Air Conditioner and Heater Plumbing for 2015 Jeep Compass

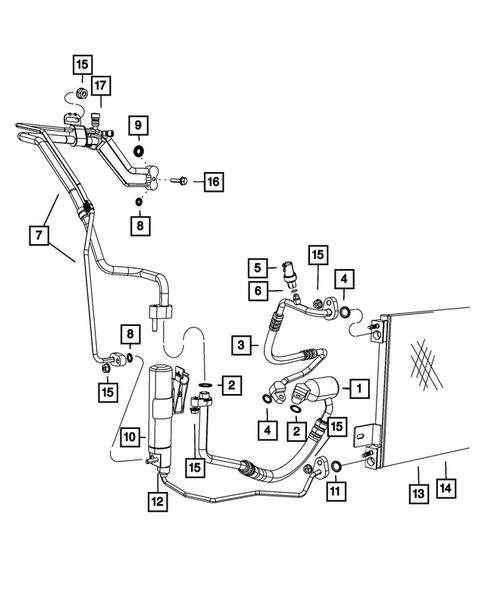

No.
Part # / Description / Price
Price
1
A/C Suction Line
Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: A/C SUCTION
2
A/C Line Seal Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Round 5/8in. 5/8". Suction line. Serviced with Expansion Valve. Slim Line.
Out of Stock
Out of Stock
3
A/C Discharge Line Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: On Or After 06/28/2010.
4
Slim Line Seal Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Slim Line. Round 1/2in. Discharge line to Compressor. Receiver Drier. Condenser End. 1/2".
Out of Stock
Out of Stock
5
A/C Pressure Transducer Valve Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: 68308727aa. On Or After 06/28/2010. Includes: O-ring.
Out of Stock
Out of Stock
6
A/C Line O Ring Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Switch to Line. Used at Switch. Suction line. For Transducer Valve.
Out of Stock
Out of Stock
7
A/C Suction And Liquid Line Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS.
Description: After 09/12/11.
7
A/C Suction And Liquid Line Mopar
Mopar Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: After 09/12/11.
8
Slim Line Seal Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Slim Line. Receiver Drier. 3/8". Liquid line.
Out of Stock
Out of Stock
10
Receiver Drier Mopar
Mopar Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: This Drier Does Not Have A Tube On The Bottom. Does Not Have A Line On The Bottom.
Out of Stock
Out of Stock
10
Receiver Drier Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION.
Description: Includes Tube On Bottom Of Drier. Has line on the bottom. After 09/12/11.
10
13
Air Conditioning Condenser Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION.
Description: Manual Transmission [DD7,DEF]. NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
13
Air Conditioning Condenser Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
14
Condenser And Trans Cooler Cooler Mopar
Mopar Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Includes: Reciever Drier. NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
15
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC 16V E22 VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Out of Stock
Out of Stock
15
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC 16V E22 VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Out of Stock
Out of Stock
17
A/C Charge Valve Cap Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Low Side.
17
A/C Charge Valve Cap Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: High Side.

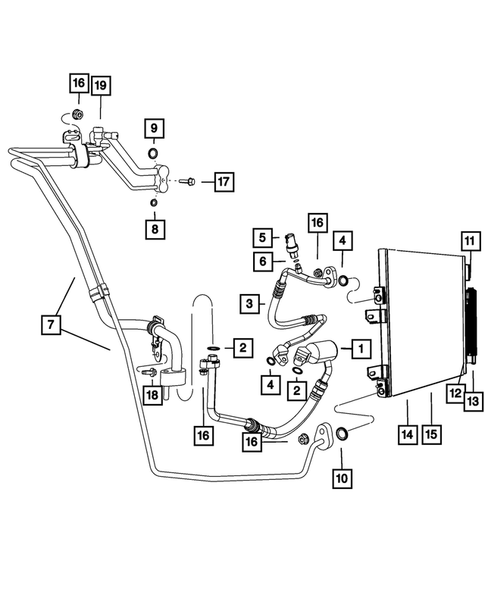

No.
Part # / Description / Price
Price
1
A/C Suction Line Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: A/C SUCTION
2
A/C Line Seal Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Round 5/8in. 5/8". Suction line. Serviced with Expansion Valve. Slim Line.
Out of Stock
Out of Stock
3
A/C Discharge Line Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: On Or After 06/28/2010.
4
Slim Line Seal Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Slim Line. Round 1/2in. Discharge line to Compressor. Receiver Drier. Condenser End. 1/2".
Out of Stock
Out of Stock
5
A/C Pressure Transducer Valve Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: 68308727aa. On Or After 06/28/2010. Includes: O-ring.
Out of Stock
Out of Stock
6
A/C Line O Ring Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Switch to Line. Used at Switch. Suction line. For Transducer Valve.
Out of Stock
Out of Stock
7
A/C Suction And Liquid Line Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS.
Description: After 09/12/11.
7
A/C Suction And Liquid Line Mopar
Mopar Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: After 09/12/11.
8
Slim Line Seal Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Slim Line. Receiver Drier. 3/8". Liquid line.
Out of Stock
Out of Stock
11
Receiver Drier Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION.
Description: Includes Tube On Bottom Of Drier. Has line on the bottom. After 09/12/11.
11
Receiver Drier Mopar
Mopar Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: This Drier Does Not Have A Tube On The Bottom. Does Not Have A Line On The Bottom.
Out of Stock
Out of Stock
12
Out of Stock
13
Screw, Receiver Drier Mopar
Mopar Description: Receiver Drier. Drier to Condenser. Drier Attaching.
Out of Stock
Out of Stock
14
Condenser And Trans Cooler Cooler Mopar
Mopar Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Includes: Reciever Drier. NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
15
Air Conditioning Condenser Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION.
Description: Manual Transmission [DD7,DEF]. NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
16
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC 16V E22 VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Out of Stock
Out of Stock
16
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC 16V E22 VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Out of Stock
Out of Stock
18
Hex Head Bolt And Washer Mopar
Mopar Description: M8x1.25x25.00. Bin Cover to Floor. M8-1.25.
Out of Stock
Out of Stock
19
A/C Charge Valve Cap Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Low Side.
No.
Part # / Description / Price
Price
1

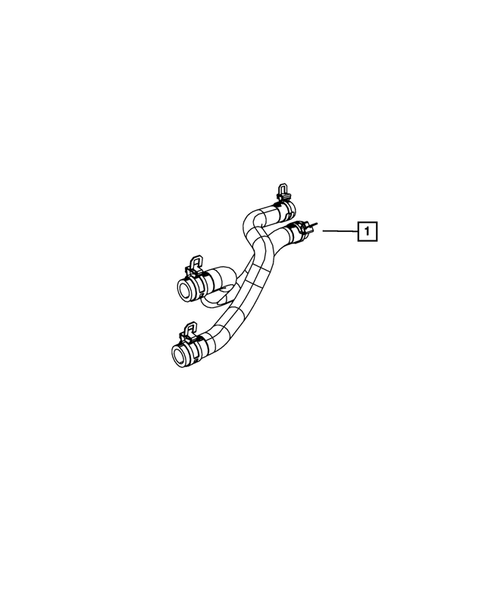

Heater Supply Hose Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC 16V E22 VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.
Description: Supply And Return. Includes: Clamps. Up-To [10-17-07] Includes Housing and Seal. After [10-17-07]. Contains adapter and seal.
Out of Stock
Out of Stock
