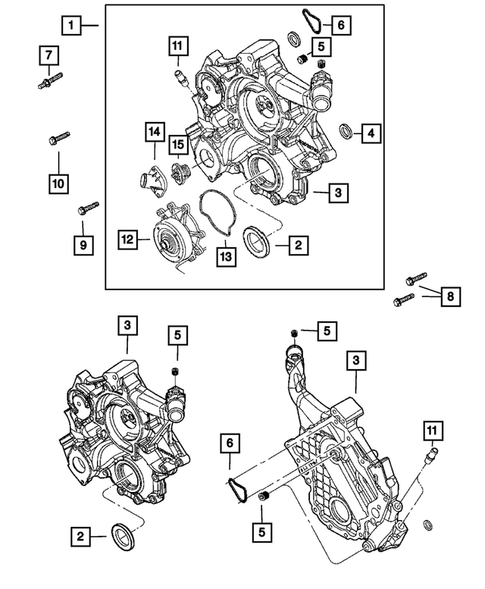

Timing Belt/Chain and Cover and Balance Shaft for 2009 Dodge Ram 1500
No.
Part # / Description / Price
Price
1
1
Timing Cover Kit
Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: See Notes. Includes Items 2,3,4,5,,11. Items 2,3,4,5,6,7 Included. Includes Items 2,3,4,8,11. Items 2,3,4,5,8,11 Included.
2
Crankshaft Oil Seal Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Front. Also serviced wih Cover. Serviced with Cover.
Out of Stock
Out of Stock
4
Chain Case Cover O Ring Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Also Serviced With Item 1. Chain Case Cover. See Note. Also serviced wih Cover. Timing Belt Cover. Timing Chain Cover. Also serviced with Cover.
Out of Stock
Out of Stock
5
Hex Socket Plug Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: SEAL.FEAT
Out of Stock
Out of Stock
6
Chain Case Cover Gasket Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Also serviced wih Cover. New Sealing Surface, Use Gray RTV 82300234. Serviced with Cover. See Note. Also Serviced With Item 1.
Out of Stock
Out of Stock
7
Double Ended Stud, Cover, Cylinder Block Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Timing Case Cover Cylinder Block. [M10x1.5x.437- 14x145.2]. Front Cover. Timing Belt Cover. Chain Case Cover. Timing Chain Cover. Mounting. [M10X1.50X.437-14X145.20]. Timing Cover To Engine Block.
8
9
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Sold Individually
10
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: [M10x1.5x90.0]. Cover To Cylinder Block. [M10x1.50x87.00]. [M10x1.50x90.0]. Timing Cover To Engine Block. Timing Chain Cover. Timing Belt Cover. Chain Case Cover.
11
Nipple, Heater Hose Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Y-Style. Also Serviced With Item 1. Water Supply Rear Lower Intake. Also serviced wih Cover. Heater Hose To Lower Intake Manifold. Heater hose fitting. 0.375-18x2.00. Special .375-18x2.00 Heater Hose Supply. Also serviced with Cover.
Out of Stock
Out of Stock
12
Water Pump Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: With Gasket. Includes Pulley.
Out of Stock
Out of Stock
13
Water Pump Gasket Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Also Serviced With Water Pump.
Out of Stock
Out of Stock
14
Thermostat Housing Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Out of Stock
Out of Stock
15
Thermostat Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: With Seal. 195 Degrees. Thermostat and gasket.
Out of Stock
Out of Stock

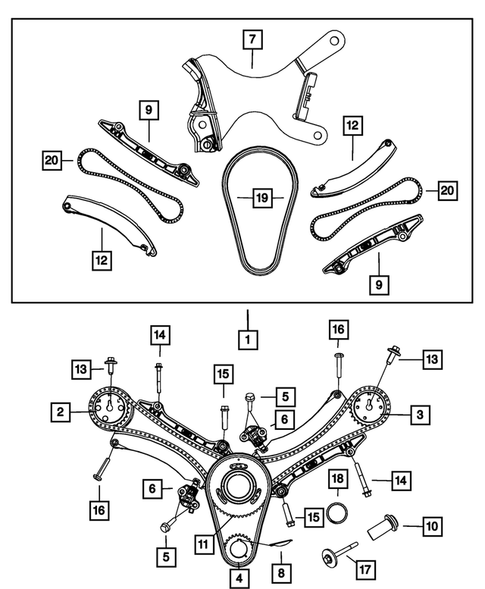

No.
Part # / Description / Price
Price
1
Engine Timing Drive Package Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: The Mopar Engine Timing Drive Package (68003352AA) for 2007-2013 Mopar models is designed to meet OEM specifications, ensuring precise fitment and reliable performance. This package includes all necessary components for maintaining optimal engine timing, w ...
Out of Stock
Out of Stock
5
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Chain Guide and Secondary Tensioner. Oil Pump To Cylinder Block. M8x1.25x37.50. Oil Pump And Timing Cover To Block. Oil Pump To Timing Case Cover. Oil Pump To Engine Block.
6
Chain Tensioner, Secondary, Right Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Also serviced In Pacage Item 1. [Secondary].
6
Chain Tensioner, Secondary, Left Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Also serviced In Pacage Item 1. [Secondary].
7
Chain Tensioner Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Primary. Also serviced in Timing Drive Package. Also Serviced In Package Item 1.
8
Woodruff Key Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: For Crankshaft Sprocket. For Chrankshaft Sprocket. M5x62.00.
Out of Stock
Out of Stock
11
Idler Sprocket Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Includes Single Primary And Double Secodary Sprocket. Primary And Secondary.
13
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Mega Cab. [M12x1.75x37.0]. M12x1.75. Camshaft Sprocket. [M12x1.75x37.00]. Quad Cab. Regular Cab.
Out of Stock
Out of Stock
14
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Timing Chain Guide To Cylinder Block. M8x1.25x60.00. Primary Tensioner to Engine Block. Oil Pump Mounting. Oil Pump To Engine Block.
15
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Tensioner Arm To Left Cylinder Head. M8x1.25x45.00. Balance Shaft Assembly. Timing Guide to Cylinder Head. [M8x1.25x110.00]. [M8x1.25x45.0]. Timing Guide to Cyliner Head.
16
Truss Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: M8x1.25x45.00. Secondary Tensioner To Cylinder Head. Secondary Tensioner Arm. Also serviced in Drive Package. Tensioner Arm To Right Cylinder Head. M8x1.25x45.0.
Out of Stock
Out of Stock
17
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Idler To Cylinder Block. M10x1.50x10.00. Idler Sprocket To Engine Block. [M10x1.50x110.00]. [M10x1.5x110.0].
Out of Stock
Out of Stock
