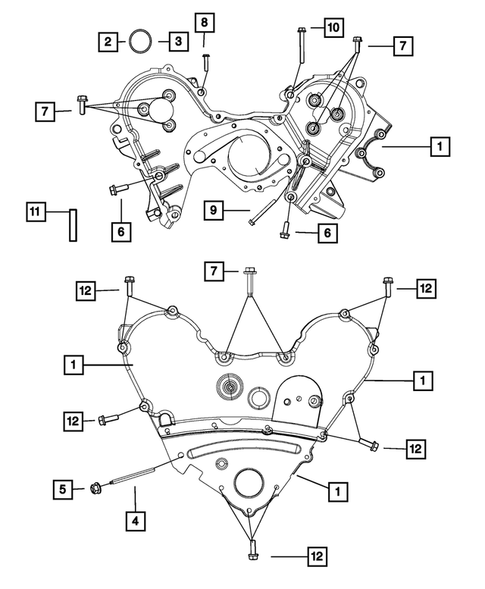

Timing Belt/Chain and Cover and Balance Shaft for 2009 Dodge Charger
No.
Part # / Description / Price
Price
1
Mopar OEM Timing Belt Cover, Outer Lower
Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Mopar OEM Outer Lower.
1
Timing Case Cover, Outer Upper Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Outer Upper.
1
Timing Case Cover, Inner Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Inner.
2
Timing Case Cover Gasket Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Water Inlet to Block.
3
Water Pump To Front Cover Seal Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Timing belt cover to block.
Out of Stock
Out of Stock
4
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: [m10x1.50x117.90]. Inner Cover To Cylinder Block. Outer Cover to Block.
5
Flange Lock Nut Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M10x1.50. As Required. Upper Intermediate Shaft to Steering Column. Outer Timing Cover To Cylinder Block. Timing Belt Cover Outer to Inner. Attach Elbow to Cyl Head. Bracket Attach. Support Bracket.
6
Hex Head Screw And Washer, Timing Belt Cover To Block Right Rear Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: HEX HEAD
Out of Stock
Out of Stock
7
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Camshaft Thurst Plate To Cylinder Head. Front Inner Cover To Cylinder Head. Camshaft Thrust Plate. Timing Belt Cover Inner to Cylinder Head. M8x1.25x25.00. [naa,nae,nas]. Outer to Inner. Inner Cover To Right Cylinder Head. Bracket To Canister.
8
Hex Head Screw And Washer, Timing Belt Cover To Head Left Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M10x1.5x85. Chain Cover Attach. Timing Cover To Engine Block. Inner Timing Cover To Cylinder Head. Cover To Cylinder Block.
Out of Stock
Out of Stock
9
Hex Head Bolt Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. ALL V6 ENGINES. All V8 Engines.
Description: Outer Timing Case Cover To Cylinder Block. Inner Cover To Cylinder Head. M10x1.50x100.00. Engine mount bracket to block. Engine mount brkt to cyl block. Inner Cover To Cylinder Block.
12
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Front Sensor to Knuckle. Motor attaching. Suction Line to Crossmember. DVD screen bracket. Outer to Inner [M6x1.0x20.0]. Outer Cover to Inner Cover. Turbo Return Tube. M6x1.00x20.00.

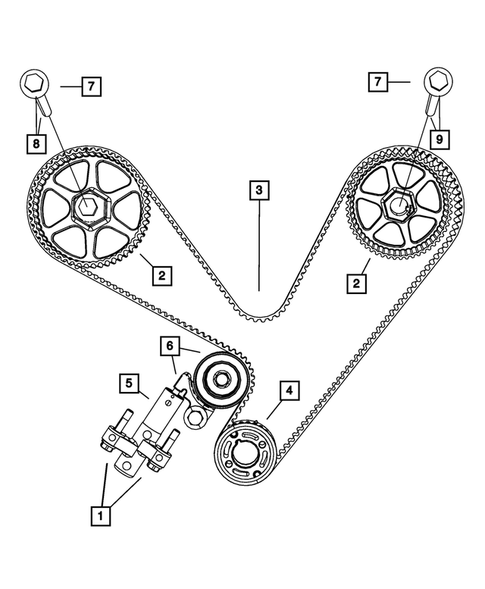

No.
Part # / Description / Price
Price
1
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M8x1.25x45.00. Tensioner To Cylinder Block. Tensioner To Timing Case Cover. Front Pipe To Exhaust Manifold. M8x1.25x45.0]. Bracket to dmpi.
Out of Stock
Out of Stock
2
Camshaft Sprocket, Right Side Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Right.
2
Camshaft Sprocket Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Includes Cam Sensor Ring. Left. discountinued July 1st 2022
3
Out of Stock
4
Crankshaft Sprocket Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Crankshaft Gear. Crankshaft Timing Belt. Front Crankshaft.
5
Belt Tensioner 2 Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: With Arm, Pivot Bolt, and Snubber. Contains: Crank, Rods, Pistons, Rings, Pick Up Tube, Oil Pan.
Not For Sale
Not For Sale
6
Pivot Tensioner Arm Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: The Mopar Pivot Tensioner Arm with part number 4663515AD is a crucial component designed for various Chrysler, Dodge, Jeep, and Ram vehicles manufactured between 2001 and 2011. This part is essential for the proper tensioning of the timing belt or chain, e ...
Out of Stock
Out of Stock
7
Flat Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Id=m13 od=31.00 thk=5.71. Camshaft Sprocket To Cylinder Head. Right Or Left Camshaft Sprockets. M13x31.00x5.71.
8
Hex Head Lock Bolt, Mounting, Right Side Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M12x1.5x215. Right Camshaft Sprocket. [m12x1.50x215.00].
9
Hex Head Lock Bolt, Mounting, Left Side Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M12x1.5x258. Left Camshaft Sprockets. [m12x1.50x258.00].
2 This part contains hazardous materials. Extra shipping costs apply.
