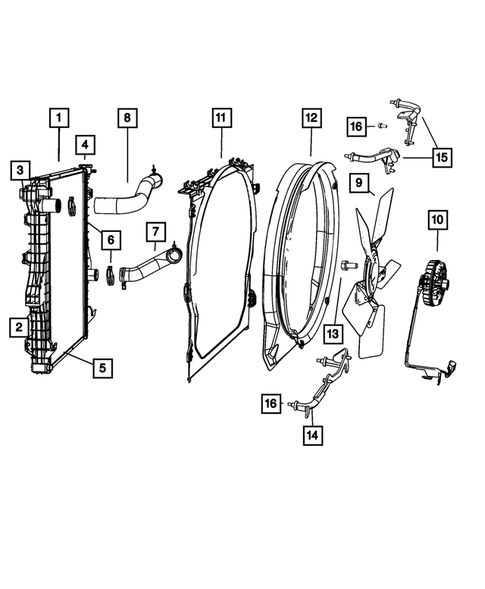

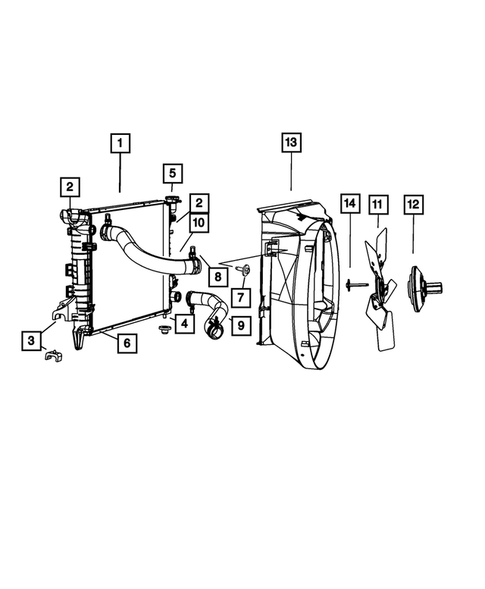

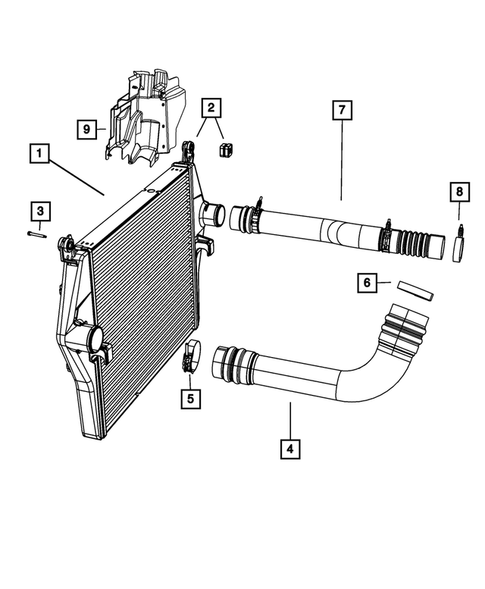

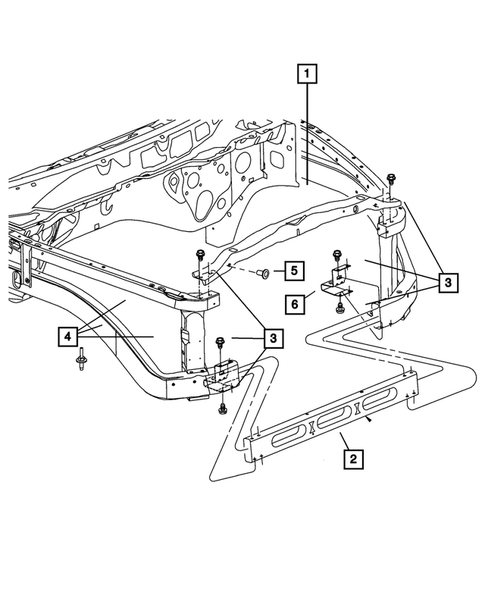

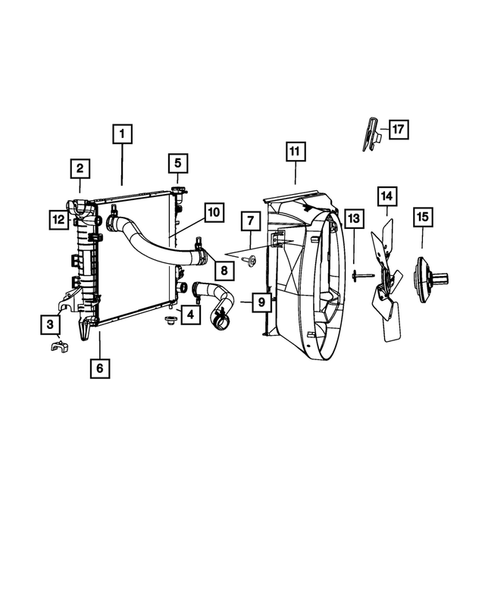

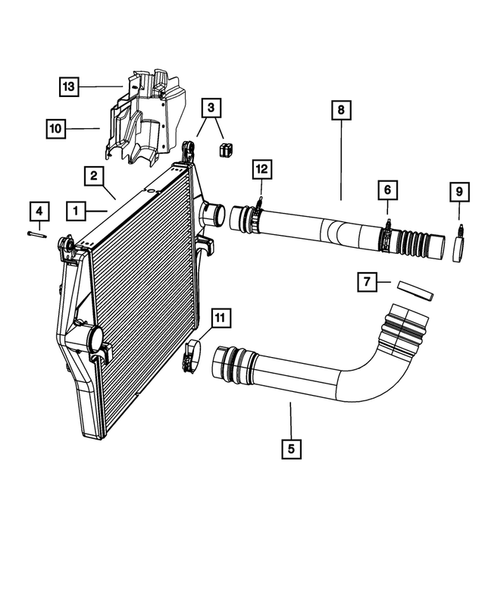

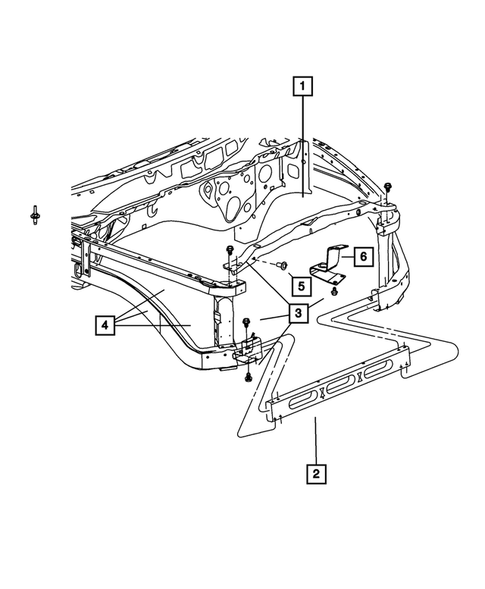

Radiator and Related Parts; Charge Air Cooler for 2008 Dodge Ram 3500
No.
Part # / Description / Price
Price
1
Engine Cooling Radiator
Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
1
Clip / Spring Nut Mopar
Mopar Description: M8.0x1.25x25.37lx17.27w. Brackets To Shell. Corner Bracket To Shell & Mounting Bracket. Center Reinforcement To Shell & Bracket To Center Support. Engine Oil Cooler To Bracket. U.
Out of Stock
Out of Stock
1
Engine Cooling Radiator Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
2
Radiator Isolator Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All Diesels Engines.
Description: Mounting. And Air Charge Cooler.
3
Radiator Isolator, Lower Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All Diesels Engines.
Description: Charge Air and Radiator. Mounting. Lower. Upper.
Out of Stock
Out of Stock
6
Radiator Draincock Mopar
Mopar Description: With Oring. With O Ring. After 01/10/2005. Radiator.
Out of Stock
Out of Stock
7
Hose Clamp Mopar
Mopar Description: Water pump inlet. Water pump end. Engine end. 60x15. Engine side. Radiator Inlet Hose. Lower.
10
Out of Stock
11
Fan Drive Mopar
Mopar Description: The Mopar part number 55056990AC refers to a Cooling Fan Clutch. This component is critical for the proper operation of the vehicleÂ’s cooling system, helping to regulate engine temperature by controlling the fanÂ’s operation.
Description:
The 55056990AC ...
Out of Stock
Out of Stock
14
Hex Head Screw And Washer Mopar
Mopar Description: .312-18x.75. Fan Drive attaching. M4.2x1.41x20.00. Attach Fan to Fan Assembly. Fan To Fan Drive.
15
Shroud Bracket, Center Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions. HD Automatic HDRFE Transmission.
Description: Center.
16
Shroud Bracket, Right Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions. HD Automatic HDRFE Transmission.
Description: Right.
16
Shroud Bracket, Left Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 4-SPD. AUTOMATIC 48RE TRANSMISSION. 6-SPEED MANUAL G56 TRANSMISSION. All Manual Transmissions. HD Automatic HDRFE Transmission.
Description: Left.
No.
Part # / Description / Price
Price
1
Engine Cooling Radiator Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
1
Engine Cooling Radiator Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
1
Clip / Spring Nut Mopar
Mopar Description: M8.0x1.25x25.37lx17.27w. Brackets To Shell. Corner Bracket To Shell & Mounting Bracket. Center Reinforcement To Shell & Bracket To Center Support. Engine Oil Cooler To Bracket. U.
Out of Stock
Out of Stock
2
Radiator Isolator Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All Diesels Engines.
Description: Mounting. And Air Charge Cooler.
3
Radiator Isolator, Lower Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All Diesels Engines.
Description: Charge Air and Radiator. Mounting. Lower. Upper.
Out of Stock
Out of Stock
5
Radiator Draincock Mopar
Mopar Description: With Oring. With O Ring. After 01/10/2005. Radiator.
Out of Stock
Out of Stock
6
Hose Clamp Mopar
Mopar Description: Water pump inlet. Water pump end. Engine end. 60x15. Engine side. Radiator Inlet Hose. Lower.
9
Out of Stock
10
Fan Drive Mopar
Mopar Description: The Mopar part number 55056990AC refers to a Cooling Fan Clutch. This component is critical for the proper operation of the vehicleÂ’s cooling system, helping to regulate engine temperature by controlling the fanÂ’s operation.
Description:
The 55056990AC ...
Out of Stock
Out of Stock
13
Hex Head Screw And Washer Mopar
Mopar Description: .312-18x.75. Fan Drive attaching. M4.2x1.41x20.00. Attach Fan to Fan Assembly. Fan To Fan Drive.
14
Shroud Bracket, Center Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. All Manual Transmissions.
Description: Center.
15
Shroud Bracket, Right Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. All Manual Transmissions.
Description: Right.
15
Shroud Bracket, Left Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-SPD AUTO AISIN AS68RC TRANSMISSION. All Manual Transmissions.
Description: Left.
No.
Part # / Description / Price
Price
2
Charge Air Cooler Package Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. All Diesels Engines.
Description: Charge Air Cooler, Screw,Instruction Sheet. Stamped 55056817AC.
3
Radiator Isolator Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All Diesels Engines.
Description: Mounting. And Air Charge Cooler.
4
Hex Head Screw And Washer Mopar
Mopar Description: Hex Head Screw And Captive Washer
Sold Individually
Sold Individually
Out of Stock
Out of Stock
5
Charge Air Cooler Duct, Outlet, Left Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Outlet.
6
Hose Clamp Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Tube to hose charge air cooler. Duct To Charge Air Cooler. Hose to cac. Cac to duct. Cac end.
7
Hose Clamp Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: To intake manifold.
Out of Stock
Out of Stock
8
Charge Air Cooler Duct, Inlet Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Inlet.
9
Hose Clamp Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All Diesels Engines.
Description: Turbo Outlet. 2.75- T Bolt. CAC Duct to CAC inlet.
Out of Stock
Out of Stock
11
Hose Clamp Mopar
Mopar Notes: Engines: 5.9L I6 HO CUMMINS TD ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Duct to Engine. Cac duct to cac. Duct to Air Cooler. Engine End.
No.
Part # / Description / Price
Price
1
Charge Air Cooler Package Mopar
Mopar Description: Charge Air Cooler, Screw,Instruction Sheet. Stamped 55056817AC.
2
Radiator Isolator Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All Diesels Engines.
Description: Mounting. And Air Charge Cooler.
3
Hex Head Screw And Washer Mopar
Mopar Description: Hex Head Screw And Captive Washer
Sold Individually
Sold Individually
Out of Stock
Out of Stock
4
Charge Air Cooler Duct, Outlet, Left Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Outlet.
5
Hose Clamp Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Tube to hose charge air cooler. Duct To Charge Air Cooler. Hose to cac. Cac to duct. Cac end.
6
Hose Clamp Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: To intake manifold.
Out of Stock
Out of Stock
7
Charge Air Cooler Duct, Inlet Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Inlet.
8
Hose Clamp Mopar
Mopar Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All Diesels Engines.
Description: Turbo Outlet. 2.75- T Bolt. CAC Duct to CAC inlet.
Out of Stock
Out of Stock
No.
Part # / Description / Price
Price
5
Hex Nut Rivet, Mounting Mopar
Mopar Description: M6x1.00 Rivnut. Nut Rivet. H/shield to spare tire xmbr rail. Riv-Nut Hex Drive. Cooling Line To Front Crossmember. Riv Nut M6x1.00x15.24. Center Rail To Cooling Hose Bracket.
Out of Stock
Out of Stock
No.
Part # / Description / Price
Price
5
Hex Nut Rivet, Mounting Mopar
Mopar Description: M6x1.00 Rivnut. Nut Rivet. H/shield to spare tire xmbr rail. Riv-Nut Hex Drive. Cooling Line To Front Crossmember. Riv Nut M6x1.00x15.24. Center Rail To Cooling Hose Bracket.
Out of Stock
Out of Stock
No.
Part # / Description / Price
Price
N/A
Hex Head Screw And Washer Mopar
Mopar Description: Hex Head Screw And Captive Washer
Sold Individually
Sold Individually
Out of Stock
Out of Stock
7
Hex Head Screw And Washer Mopar
Mopar Description: M8-1.25x22.00. Fan shroud to cooling module. Also Included in Left Liner. Shroud To Engine. Fan Shroud to Radiator.
8
Hose Clamp Mopar
Mopar Description: Water pump inlet. Water pump end. Engine end. 60x15. Engine side. Radiator Inlet Hose. Lower.
13
Hex Head Bolt Mopar
Mopar Description: 5/16x18x3/4. Fan to fan drive assy. Anti-Lock Brake Sensor. Fan to Fan Assembly. Abs. .312-18x.75. Camshaft Thrust Plate.
No.
Part # / Description / Price
Price
7
Hex Head Screw And Washer Mopar
Mopar Description: M8-1.25x22.00. Fan shroud to cooling module. Also Included in Left Liner. Shroud To Engine. Fan Shroud to Radiator.
8
Hose Clamp Mopar
Mopar Description: Water pump inlet. Water pump end. Engine end. 60x15. Engine side. Radiator Inlet Hose. Lower.
14
Hex Head Bolt Mopar
Mopar Description: 5/16x18x3/4. Fan to fan drive assy. Anti-Lock Brake Sensor. Fan to Fan Assembly. Abs. .312-18x.75. Camshaft Thrust Plate.
