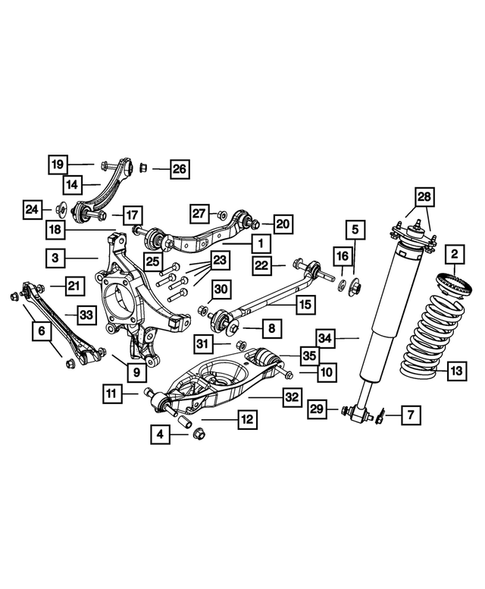

Rear Suspension and Cradle for 2008 Chrysler Pacifica
No.
Part # / Description / Price
Price
4
Hex Lock Nut, Mounting
Mopar
Mopar Description: Lower Shock To Knuckle Rear. Spring Link to Knuckle. UCA Pivot Bar Bolt and Retainer.
Out of Stock
Out of Stock
6
Nut And Washer Mopar
Mopar Description: Camber Link to Frame. Compression Link to Knuckle/Frame. Spring Link to Frame. Tension Link to Frame. Toe Link to Knuckle.
8
Out of Stock
9
Hex Head Bolt And Washer Mopar
Mopar Description: M12x1.75x75.00. Engine Mount To Left Axle Bracket. Engine Mount To Right Axle Bracket. Shock Mounting. Torque Rod Bracket to Transmission. Shock to LCA. Compression link to knuckle. Camber Screw Toe Link to Frame. Shock to Shock Tower. Shock Lower.Sold Individually
Out of Stock
Out of Stock
10
Hex Flange Head Lock Bolt Mopar
Mopar Description: Torque Strut To Supension Crossmember. Torque Strut To Suspension Crossmember. M12x1.75x110.00. Front Pivot Mounting. LCA Front Pivot. Spring Link to Frame.
Out of Stock
Out of Stock
11
Hex Head Bolt Mopar
Mopar Description: M14x2.00x120.00. If a different Bolt Length is needed, use Item #11. Lower Control Arm to Knuckle. Spring link to knuckle. Front Lower Control Arm to Cradle.
Out of Stock
Out of Stock
17
Hex Head Bolt And Washer Mopar
Mopar Description: Camber Link to Knuckle. Tension Link to Knuckle. M12x1.75x85. Shock Absorbor to Spring Link. Shock absorber to spring link.
Out of Stock
Out of Stock
19
Hex Head Bolt And Washer Mopar
Mopar Description: Engine Mount To Front Axle. M12x1.75x70. RR Shock Absorber To Shock Mount. Track bar to axle bracket. Stabilizer Bar To Cradle. Engine Mount To Engine Mount Bracket. Compression link to subframe. Camber Link To Subframe. Tension Link To Subframe.
Out of Stock
Out of Stock
24
Hex Nut And Washer Mopar
Mopar Description: M12x1.75. Tension Link to Knuckle. Camber Link To Knuckle.
Out of Stock
Out of Stock
26
Out of Stock
28
Hex Head Bolt And Washer Mopar
Mopar Description: M10x1.50x42.00. Extension to Rear Rail. Shock absorber to body.
Out of Stock
Out of Stock
No.
Part # / Description / Price
Price
5
Hex Head Bolt And Washer Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: M14x2.00x191.00. Rear subframe module to body rr. Rr cradle isolators to body. M14x2.00x180.00.
