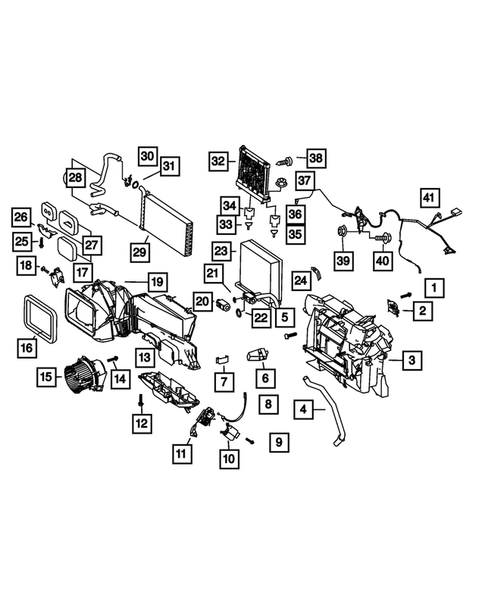

Air Conditioner and Heater Units for 2007 Dodge Sprinter 3500
No.
Part # / Description / Price
Price
7
Heater Clip
Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Cover to Box.
8
11
20
Expansion Valve Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: EXPANSION
21
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 17x2mm.
Out of Stock
Out of Stock
22
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 10.6x2mm. Evaporator.
23
23
23
24
Temperature Sensor Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Flat Plug Version.
27
30
Clip Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Pipe Line to Heater Case. Pipe Lines.
31
O Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: At Control Valve. Heating Pipe Lines.
34
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [4 Pin / N33/2]. Turn Rate Sensor [4-PIN,B24/15]. Control Unit Independent Heating [N33/3].
36
Wiring Repair Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X162]. B11/4]. Sensor of Outside Temperature Indicator [2-PIN,B14]. [2-pin mqs. S11]. Coolant Temperature Sensor. Intake Air Temperature Sensor 2-PIN;B17. Refrigerant Temperature Sensor 2-PIN. Temperature Sensor / [2 Pin B10/6]].
37
Hex Flange Lock Nut Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M8x1.25. Condenser to Mounting M8.
39
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6x1.00. Throttle Body Shield to Intake Manifold. Heater return tube to engine. Rod to Lever Assembly. Engine Oil Level Indicator Tube. Accelerator Pedal Assembly to Dash Panel. M6. Quantity Of 4 Is Needed. Parking Brake Cable Guide to Floor Pan.
40
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6x1.00x20.00. Fuel Rail To Intake Manifold. Brake Hose to Frame Rail. Brake Tube Junction Block.
Out of Stock
Out of Stock
No.
Part # / Description / Price
Price

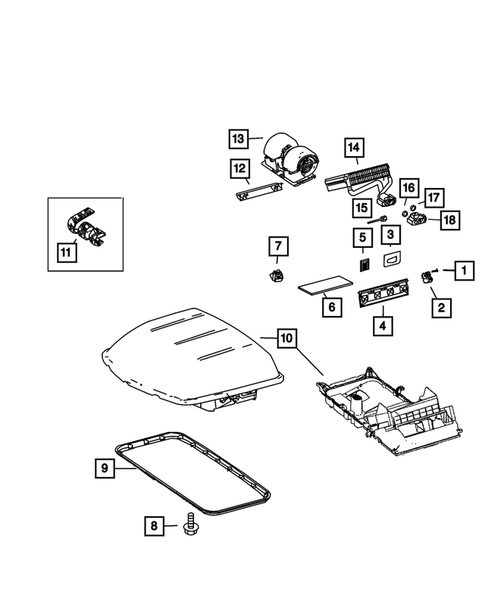

N/A
Installation Rivnut Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Heating to Cross Member. Heating to Crossmember.
5
Heater Hose Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Return from Valve.
6
O Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: At Control Valve. Heating Pipe Lines.
8
Heater Housing Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Includes Blower, Core, Resistor, Valve, Tubes. Additional Heater. Regulating Valve.
8
Valve Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Regulating Valve.
10
Heater Hose Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Return from Heat Exchanger.
11
15
Heater Hose Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Partition Point to Heater.
16
Clip Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Pipe Line to Heater Case. Pipe Lines.
19
Heater Hose Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Feed.
21
Hex Flange Head Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Mounting to Longitudinal Member Bottom M6x16. Lid Lock. Mounting to Longitundinal Member Bottom M6x16. [M6x10].
23
Tapping Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Heating to Cross Member 6.3x13. Heater to Crossmember 6.3x13.
24
Retainer Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Harness To Cylinder Cover. Plug Connections.
25
Heater Clip Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Cover to Box.
26
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Out of Stock
Out of Stock
27
Heater Duct Gasket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Intake Air Duct.
No.
Part # / Description / Price
Price

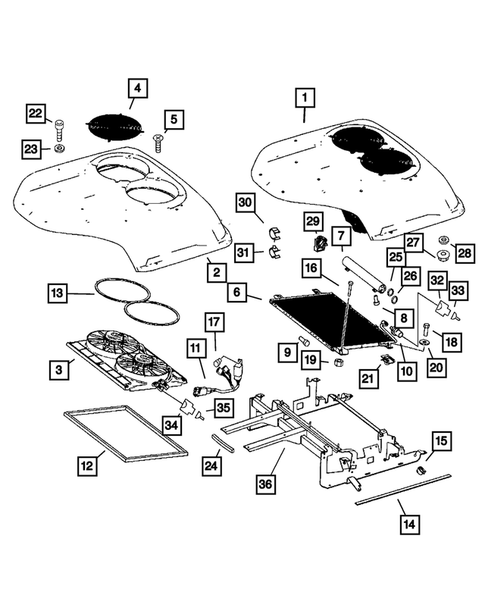

9
Bolt And Washer Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Handle to Door. Outer Cover To Inner Cover. M6x1.00x25.00. Condenser to Mounting Plate M6x25.
10
A/C Pressure Switch Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: High A/C Pressure.
17
Hex Nut Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Relay to Bracket M6.
20
Flat Washer, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Shock Absorber on Water Pump. Bracket to Firewall. Condenser to Support 8MM. Bracket to Fire Wall. Condenser Mounting.
25
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [7.5 x 2 mm]. Condenser to Drier 7.5x2MM.
26
Air Conditioning Line O Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [9.5 x 2.5 mm]. [9.5x2.5mm]. Refrigerant Line to Drier 9.5x2.5.
27
Hex Flange Lock Nut Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M8x1.25. Condenser to Mounting M8.
29
Hose Bracket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Hose To Body.
30
Hose Clamp Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 19mm. Hose To Engine [19 MM].
31
Hose Clamp Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: With [HBA and or HBD]. Hose To Engine[22 - 24 / 12MM].
32
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X62/72]. B28]. Oil level and pressure sensor. [3 Pin]. Roof Refrigerant Pressure Sensor. [8-Pin/S-98].
34
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Additional Fan AC 1,2-Pin SLK2.8;M4/16.
35
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 4.0mm2 slk2.8;m4/16.
No.
Part # / Description / Price
Price

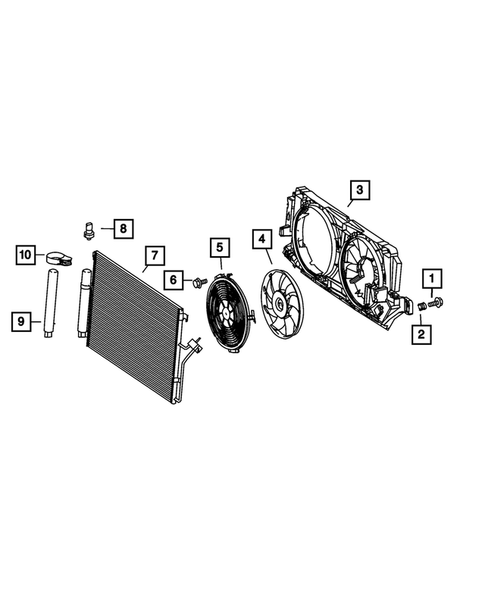

2
Bushing Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: At Condenser.
3
Fan Shroud Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [HAB with CWC and or XJW and or XJ1and or XJY].
3
Fan Shroud Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [HAB with CWC and or XJW and or XJ1and or XJY].
4
Fan, Right Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: With Dual Set Up Only.
4
Fan, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: With Single & Dual Fan Set Up.
5
Grille Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: With Dual Fan. [HAB and CWC and or XJW and or XJ1 and or XJY].
6
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Blower to Protective Grille.
7
A/C Condenser Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
8
A/C Pressure Switch Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: High A/C Pressure.
9
Receiver Drier Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Drier O-Rings Are Only Serviced With Drier Mounting Bracket. Drier O-Rings Only Serviced With Drier Mouting Bracket Kit.
10
Bracket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Drying Insert / Includes Drier O-Rings. Drying Insert / Includes Drier Orings.
No.
Part # / Description / Price
Price

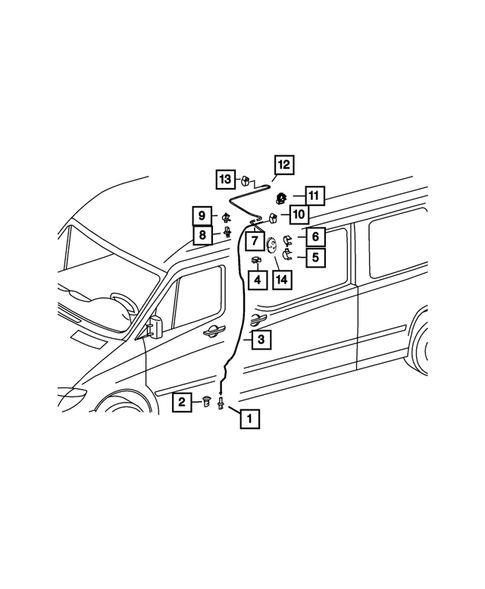

2
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [x85/22].
3
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 2 Way Female. Cockpit Connector Roof [2 Pin. X85/22]. Outlet. Plug Socket [2-PIN].
7
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Roof Ventilator Mounting.
9
Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6x20. [M6x20].
11
Interior Trim Panel Exhauster Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
13
Interior Trim Panel Exhauster Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
15
Cargo Door Weatherstrip Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Cable Duct. [60mm]. 75mm. With [nhy or gka or gke].
No.
Part # / Description / Price
Price
5
Retainer Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Harness To Cylinder Cover. Plug Connections.
8
6 Lobe Screw And Washer Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M5x0.8x15.00. PVC Valve to Right Hand Valve Cover. Actuator To Cylinder Head. M5x0.8x20. Footman Loop Attaching. PCV Valve To Cylinder Head. Actuater to valve cover. Frame Bracket. Footman Loop to Windshield. Lop to Windshield Frame.
Out of Stock
Out of Stock
16
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 17x2mm.
Out of Stock
Out of Stock
17
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 10.6x2mm. Evaporator.
No.
Part # / Description / Price
Price

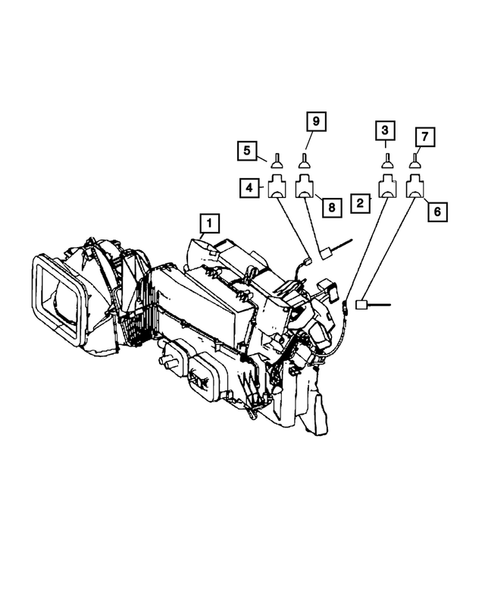

1
Housing Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Complete Heater/Evaporator Housing. See Note:.
2
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Antenna Amplifier / [1 Pin A2/18]. Blower Stage [1] Plug Connector [ 1 Pin X31/ 10]. Connector,Tank Filler [1-PIN;x25/16]. With [gfa + jpb]. Blower Stage (1) Plug connector [1PinX31/10].
3
Male Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X31/10]. [4-6 mm2.
4
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X53/8]. Roof Air [1Pin. X53/9]. X4/49]. [1 pin;r22/2] with [nhw and gbg].
5
Male Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [6.0 mm2 x31/9 & 31/12]. [6.0 mm2;mqs b38/2]. [6.0 mm2;r22/2] with [nhw.
6
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Blower Stage [1] Connector [1 Pin X31/10]. Blower Stage (1) Connector [1Pin X31/10].
Out of Stock
Out of Stock
7
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X31/10]. [0.5-1.0 mm2.
8
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Cockpit Interior Plug Connector [1 Pin LSK 8. Cockpit Plug Connector [1 Pin SLK 8, X4/49]. Connector Roof Air Conditiontioning [1 Pin]. Connector Roof Airconditioner [1 Pin. Lsk 8, x53/8]. [1 Pin / K40/9].
No.
Part # / Description / Price
Price

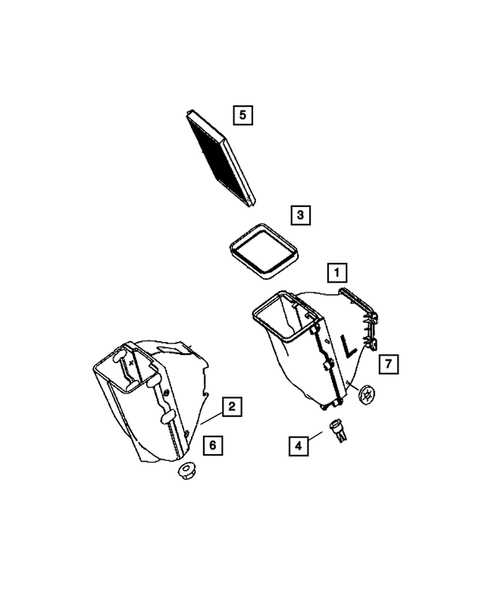

5
A/C And Heater Unit Filter Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: A/C AND HEATER UNIT
Out of Stock
Out of Stock
6
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6x1.00. Throttle Body Shield to Intake Manifold. Heater return tube to engine. Rod to Lever Assembly. Engine Oil Level Indicator Tube. Accelerator Pedal Assembly to Dash Panel. M6. Quantity Of 4 Is Needed. Parking Brake Cable Guide to Floor Pan.
No.
Part # / Description / Price
Price
4
5
Fuel Line Clamp Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 15mm.
6
Hose Clamp Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: With [HBA and or HBD]. Hose To Engine[22 - 24 / 12MM].
10
Heater Hose Clamp Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Convertible. 23-30mm.
11
Hose Bracket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Hose To Body.
No.
Part # / Description / Price
Price
8
6 Lobe Screw And Washer Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M5x0.8x15.00. PVC Valve to Right Hand Valve Cover. Actuator To Cylinder Head. M5x0.8x20. Footman Loop Attaching. PCV Valve To Cylinder Head. Actuater to valve cover. Frame Bracket. Footman Loop to Windshield. Lop to Windshield Frame.
Out of Stock
Out of Stock
