Engine Oiling for 2007 Chrysler Pacifica

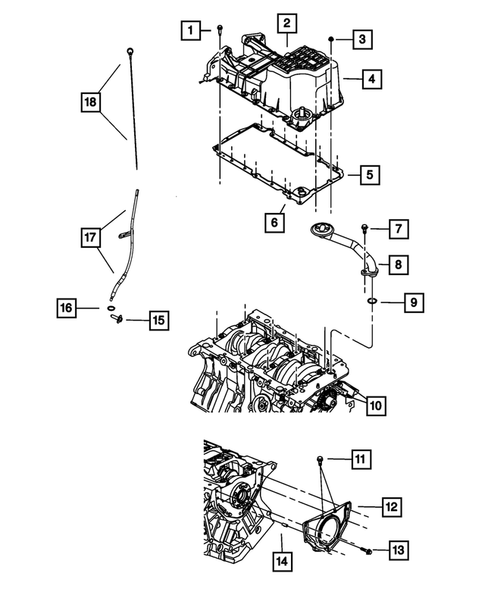

No.
Part # / Description / Price
Price
1
Out of Stock
2
Oil Drain Plug
Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Drain Plug W/Gasket[M14x1.50x21.50]
Sold Individually
Sold Individually
Out of Stock
Out of Stock
4
Mopar OEM Oil Pan Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Mopar OEM Refer To Illustration 105 For Julian Date Code Information. Used On Engines Built On 1398 05/18/08 And Before.
7
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: M8x1.25x25.25. Oil Pickup Tube To Oil Pump. M8x1.25x25.00. Engine Oil Pick Up Tube To Engine Oil Pump. Oil Pickup Tube To Chain Case Cover.
Out of Stock
Out of Stock
10
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8x1.25x35.00. [M8x1.25x42.0]. Oil Pump Back Cover To Oil Pump Body. M8x1.25x42.00. Oil Pick Up Tube. Oil Pump To Pan.
11
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Oil Pan To Rear Retainer. [M6x1.0x23.0]. M6x1.00x23.00.
12
Crankshaft Rear Oil Retainer And Seal Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Assembly with Seal and Gasket. Includes Rear Main Oil seal. See note. After build date TDDE92373XXXXX, One Piece Assembly.
Out of Stock
Out of Stock
13
Torx Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: [m6x1.00x17.00]. [M6x1.0x17.0]. Rear Oil Seal Retainer To Cylinder Block. Rear Crankshaft Oil Retainer To Cylinder Block.
14
Dowel Pin Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Out of Stock
Out of Stock
15
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: M8x1.25x12.00. Oil Indicator Tube To Cylinder Block. M8. [m8x1.25x12.0].
17
18
Out of Stock

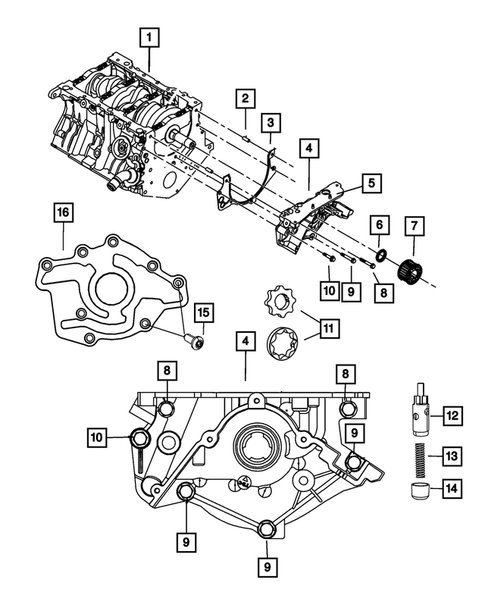

No.
Part # / Description / Price
Price
1
Long Block Engine, Remanufactured 1 Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: LONG BLOCK
Out of Stock
Out of Stock
3
Oil Pump Gasket Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Build Date Codes Are listed On Intake Plenum Tag. Up To And Including Build Date TDDE92363XXXXX.
Out of Stock
Out of Stock
4
Engine Oil Pump Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Includes Items 10,11,12,13,14,15. Includes Rotor Set, Plunger, Spring, Cap, Back Cover And Body. Complete Pump.
5
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8x1.25x35.00. [M8x1.25x42.0]. Oil Pump Back Cover To Oil Pump Body. M8x1.25x42.00. Oil Pick Up Tube. Oil Pump To Pan.
6
Front Main Crankshaft Seal Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Front.
Out of Stock
Out of Stock
7
Crankshaft Sprocket Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Crankshaft Gear. Crankshaft Timing Belt. Front Crankshaft.
8
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Oil Pump Body To Cylinder Block. M8x1.25x55.00. Intake Manifold To Cylinder Head. Fuel Rail to Intake Manifold.
9
Out of Stock
10
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M10x1.50x70. Oil Pump Body To Cylinder Block.
15
Torx Head Screw, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: [M6x1.0x15.0]. Oil Pump Cover Plate To Chain Case Cover. Oil Pump Cover To Cylinder Block. Oil Pump Back cover To Oil Pump.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
1
Mopar OEM Oil Pan Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Mopar OEM Refer To Illustration 105 For Julian Date Code Information. Used On Engines Built On 1398 05/18/08 And Before.
2
Engine Oil Filter Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: See Note. [3/4-16] With Engine Production Part Number 04892603AA Or 04892480AA.
Out of Stock
Out of Stock
3
Oil Filter Connector Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: OIL FILTER (4.0L) MJ-XJ
Out of Stock
Out of Stock
4
Engine Oil Cooler Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Refer To Illustration 105 For Julian Date Code Information. Used On Engines Built On 1398 05/18/08 And Before.
