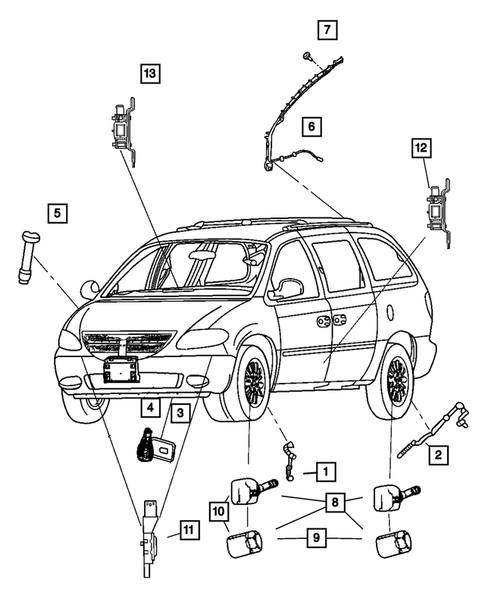

Sensors for 2006 Dodge Grand Caravan
No.
Part # / Description / Price
Price
4
Ambient Temperature Sensor
Mopar
Mopar Description: Bracket Included. Battery temp. Overhead Console.
Out of Stock
Out of Stock
7
Round Head Screw And Washer Mopar
Mopar Description: .164-15x.625. Grille to Appearance Panel. Pinch Sensor attaching. Pinch sensor to liftgate. Fuel Filler Housing to Quarter Panel Inner.
Out of Stock
Out of Stock
8
Tire Pressure Sensor, Spare Tire Mopar
Mopar Description: Cmu. Includes: Sesnor, Nut And I-Sheet. Includes: Sensor, Nut and I-Sheet. See Electrical Group 008. Contains: 1-Gray Cap, 1- Black Cap, 1- Valve Stem,Sensor & Nut. See Sensor Group 008. With Nut. Includes Attachment Nut. This package contains: 56053030ac sensor - tire pressure 56053033aa nut - tire pressure k6855511 instruction sheet -. [xgm=lab].
Out of Stock
Out of Stock
9
Mounting Hardware Kit Mopar
Mopar Description: Contains: 1-S120120001 TPM Retaining Nut, 1-S122990001 Seal Support Washer, 1-S122140001 Valve Stem Cap, Black,Euro, 1-S1201210001 Valve Stem Cap, Grey,Domestic,1-S122988001 TPM To Wheel Rim Seal, 1-S122914001 TPM Valve Core & TPM Mounting Instruction She. ...
9
Valve Stem Valve Core Kit Mopar
Mopar Description: Includes: Valve Core, Black Cap (BUX), Gray Cap(Domestic). See Sensors Group 008. Use with 68078768aa and 68078861aa. Contains: TPM Valve Core, Valve Stem Cap, Grey, Domestic, Valve Stem Cap, Black, Euro. Containes: Valve Core, Cap Euro Black and Cap Domes ...
11
Side Airbag Impact Sensor Mopar
Mopar Description: [cg1,cg3]. Side [cj1,cj3]. Frt sensors to hydroform. Right And Left Sill. Side Air Bag Module/Sensor. Front after 02/16/04.
No.
Part # / Description / Price
Price
N/A
Screw, Egr Cover Plate Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: M4.06x1.41x17.00. [m4.06x1.41x17.0]. Plastic Plenum. MAP Sensor to Intake Manifold.
N/A
Multi Purpose Bracket Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
N/A
Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: Camshaft Thurst Plate To Engine Block. M6x12. Lower Intake To Engine Block. Rear Oil Seal Retainer To Engine Block.
1
Mopar OEM Coolant Temperature Sensor Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: Mopar OEM Coolant Temperature Sensor, Oil temperature. Engine oil temp sensor. Sensor to intake manifold. Engine coolant temperature.
2
Map Sensor Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: After 05/30/05. With Next Generation Module. After 06/28/05. After 06/05/05.
Out of Stock
Out of Stock
5
Charge Air Temp Sensor Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: Mounts in Air cleaner hose. Located in clean air duct.
Out of Stock
Out of Stock
8
Throttle Position Sensor Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
9
Oil Pressure Switch Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: Includes Valve and Quick Connect. 4792355 Serviced in Valve Pkg. Contains Valve and Quick Connect.
Out of Stock
Out of Stock
10
D.I.S Camshaft Reference Sensor Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
12
Out of Stock
13
Mopar OEM Crankshaft Sensor Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: Mopar OEM After 02/24/03. Crankshaft position sensor

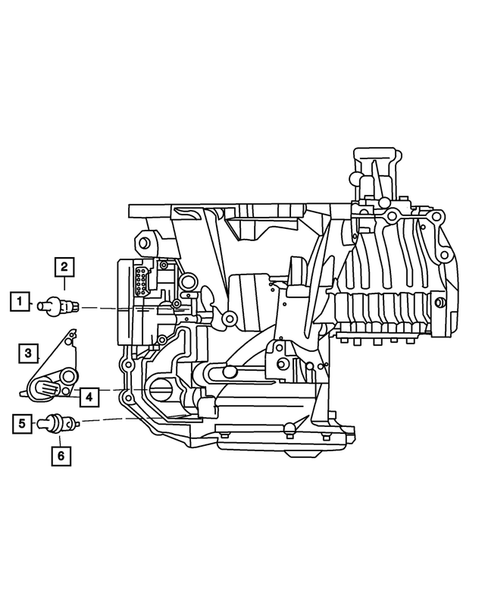

No.
Part # / Description / Price
Price
1
Transmission Input Speed Sensor Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Fwd.
Out of Stock
Out of Stock
2
Trans Speed Sensor O Ring Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Fwd. 22mm. Output Speed Sensor. Input speed sensor.
Out of Stock
Out of Stock
3
Transmission Range Sensor Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: TRANSMISSION RANGE
Out of Stock
Out of Stock
4
Manual Valve Position Sensor Seal Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Trans Range Sensor.
Out of Stock
Out of Stock
5
Transmission Output Speed Sensor Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Input and Output.
Out of Stock
Out of Stock
6
Trans Speed Sensor O Ring Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Stop Fluid Speed Sensor To Transmission. Fwd. 3.05 thk. 24mm. 3.05 Thick. Output sensor.
Out of Stock
Out of Stock

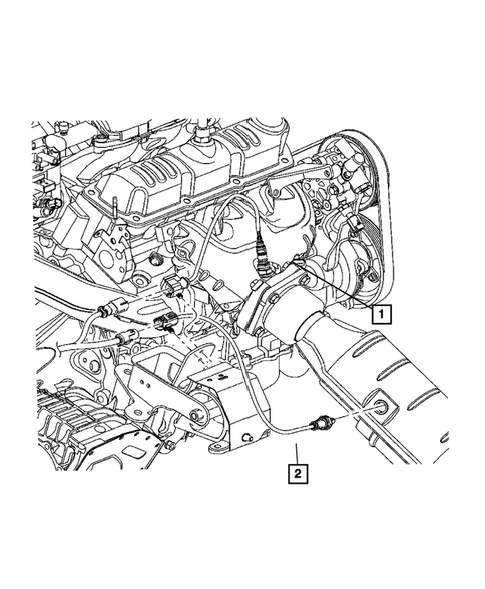

No.
Part # / Description / Price
Price
1
Oxygen Sensor, Before Catalyst, Left Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: See note:. Before catalyst.
Out of Stock
Out of Stock
2
Oxygen Sensor, Left Side, After Catalyst Mopar
Mopar Description: Up Stream wire has Black Shield. Before catalyst rt hand upstream. After catalyst lt hand. After catalyst rt hand. After catalyst downstream. [downstream,left].
Out of Stock
Out of Stock
